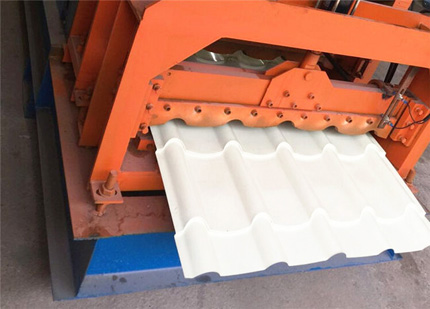

優勢--950琉璃瓦成型機
? 高強度，經久耐用
此設備機架采用國標300/350H型鋼，各組件、標準件一律采用國標產品，絕無空心軸等省料現象。設備運行穩定、操作簡單，能充分保障您的生產進度。
? 加工工序精細復雜

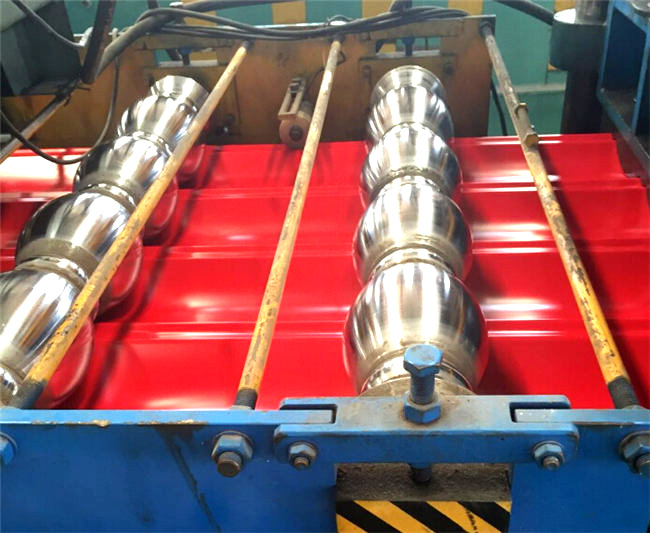

此設備壓制輥輪經數控粗加工、淬火、二次精車、電鍍等多步工序，精度高，跳動小，強度高，成型美觀，無刮傷，無變形，充分保障您的產品質量。
? 交貨快，售后積極
此設備交貨期一般為30天，整機保修一年，終身維護。
 |
 |
規格--950琉璃瓦成型機
|
序號 |
主要組件 |
規格 |
備注 |
|
1 |
軸 |
調質45鋼 |
約16道 |
|
2 |
輥輪 |
軸承鋼 |
|
|
3 |
墻板 |
A3鋼(18-20mm) |
|
|
4 |
傳動 |
鏈條或齒輪箱 |
|
|
5 |
切斷 |
液壓剪切 |
|
|
6 |
電機功率 |
5.5KW |
|
|
7 |
控制系統 |
松下PLC，安川變頻器 |
|
Main Technical Specification:
1.Material thickness: 0.3mm-0.8mm
2.Forming speed: 0-3m/min
3.Roll station:16 stations
4.Main power: 5.5kw
5.Hydraulic power: 7.5kw
6.Control system:PLC Panasonic
7.Drive: by chain
1. Single press model steel tile roll forming machine
1) Production Characteristic and use:

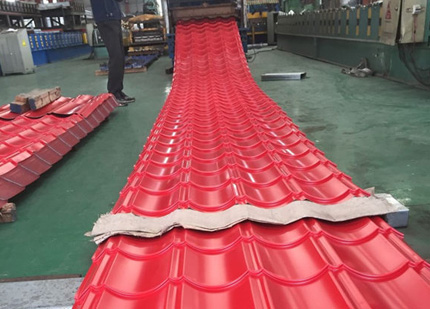

Steel tile roll forming machine adopts new station to increase the solidity of the machine; products are widely used in modern architecture roofing, the product increased the housing aesthetics.
2) Main Technical Specification:
①thickness: 0.3-0.8mm
speed: 5-6m/min
roll station: 16 stations (depend on the profile)
main power: 4.4KW Servo motor
hydraulic power: 4KW
control system: PLC Panasonic
Drive: by chain
②thickness: 0.3-0.8mm
speed: 2-4m/min
roll station: 16 stations (depend on the profile)
main power: 5.5KW
hydraulic power: 4KW
control system: PLC Panasonic
Drive: by chain
